[Farmall] Generator/regulator update; and now what??

[Ed Greany]

1. Drill hole in center of broken off stud.
  2. Soak penetrating oil on broken off stud.
  3. Use EZ-OUT twisting counterclockwise.
  4. Clean out threads and reinstall with new bolt/stud.

  Ed

Jim Becker <jim.becker at verizon.net> wrote:
  Looks like the remains of a twisted off bolt. Get some penetrating oil and
a left handed drill bit and go at it.

Jim Becker jim.becker at verizon.net

----- Original Message -----
From: "Dean Vinson"
To: "'Farmall/IHC mailing list'"
Sent: Thursday, September 07, 2006 6:13 AM
Subject: [Farmall] Generator/regulator update; and now what??


> Time for a new or rebuilt generator, looks like. I got it all hooked up
> tonight with help from you kind folks, and still no charging. But when I
> rotate the light switch (lights themselves aren't hooked up yet), the
> ammeter jumps to full discharge and the wires get warm fast. Clearly a
> short somewhere.
>
> The other good news is that when I took the generator off, I noticed that
> one of the two bolts that holds the generator mounting bracket to the
> engine
> block was missing. So I took the bracket off to see what size bolt I
> needed, and of course the second hole is all plugged up. I figured it was
> just the greasy gunk that accumulates around engines, so I got a tap and
> tried to chase it out. Couldn't make a dent. Poked at it with a
> screwdriver, then the drill. Darn thing is filled with metal, like it had
> never been drilled out to begin with. Can't be very good to only have one
> bolt holding the generator bracket in place, but it's evidently been that
> way a long time. What in the foggy blue morning?
>

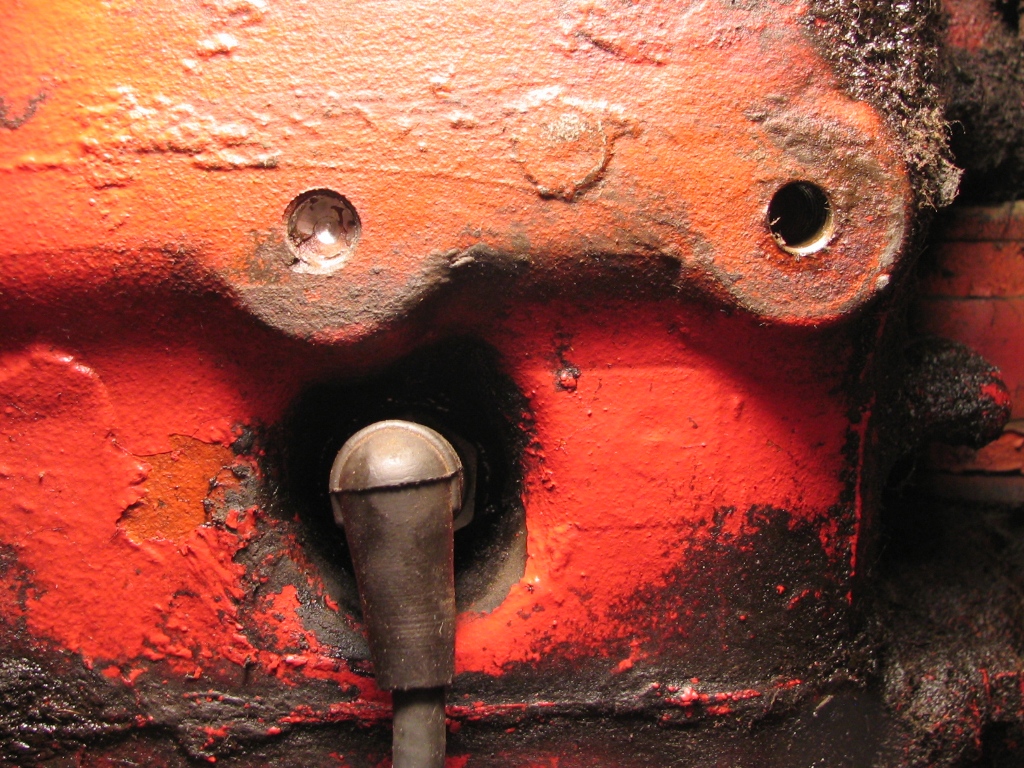

> Here's a photo: http://www.vinsonfarm.net/photos/generator_mounting.jpg
>
> Dean Vinson
> Dayton, Ohio
> www.vinsonfarm.net
